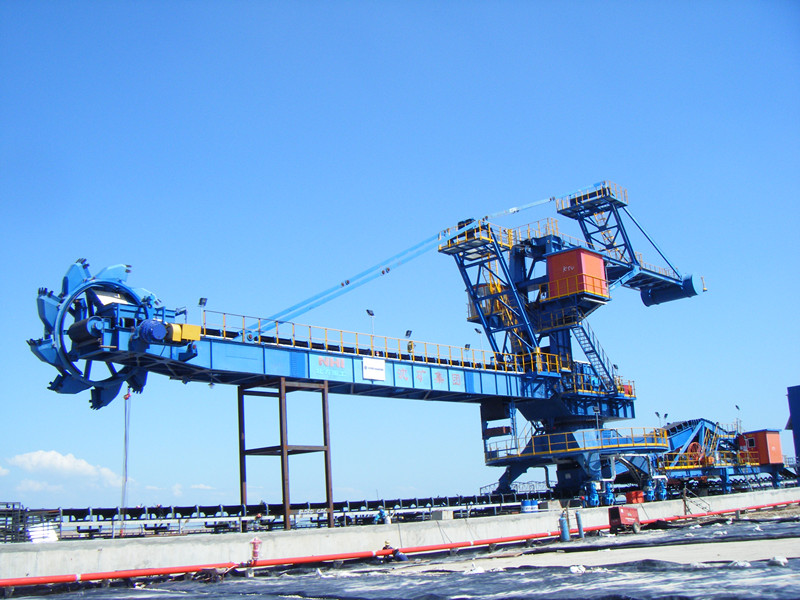

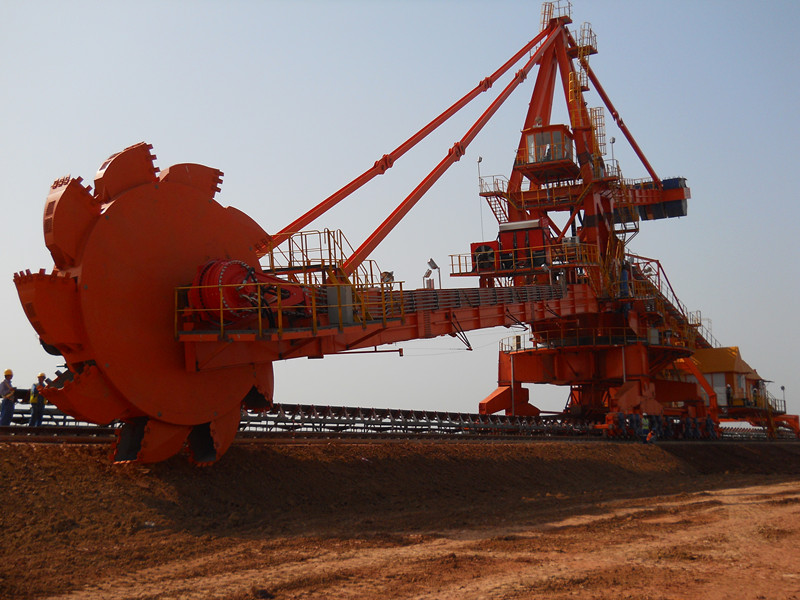

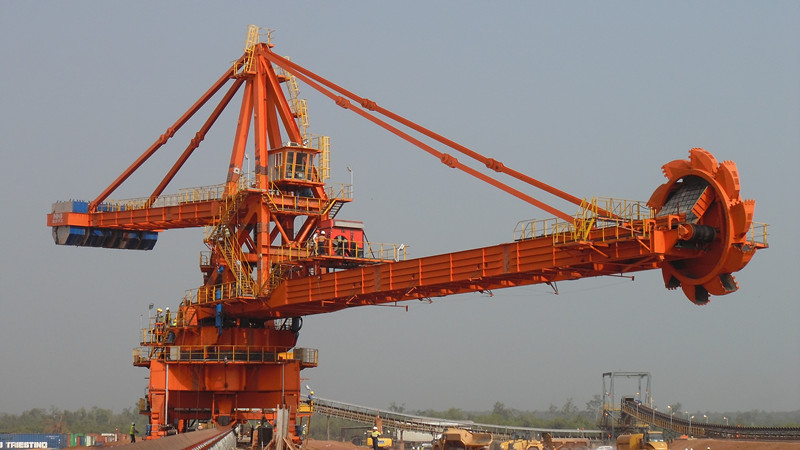

Boom Type Bucket-Wheel Stacker Reclaimer

1.Scope of Application
Boom type bucket-wheel stacker reclaimer is a large loading and unloading equipment that can span the material pile, stacking ore, raw coal and other bulk materials, and realize continuous operation of warehousing materials. It is mainly used in power, metallurgy, coal, building materials, ports, chemical industry and other industries. It is a linear storage yard that emphasizes storage without blending requirements.
2.Equipment Process and Structure
The boom type bucket wheel stacker reclaimer is an integrated stacker reclaimer, which can not be used for stacking and reclaiming at the same time.
The boom bucket wheel stacker reclaimer can be divided into wire rope pitching and hydraulic pitching according to the pitching form. According to the layout of the ground belt conveyor, the tripper has a variety of structural forms, such as fixed single tripper, semi flat tripper, full flat tripper, fixed double tripper, cross double tripper, and full function tripper.
The boom bucket wheel reclaimer does not have tripper, only has the reclaiming function.
3.Product Introduction
Our boom type bucket wheel stacker reclaimer has developed various products with reclaiming capacity, boom length, rail span and structure, and has independent intellectual property rights and won many awards in Shenyang City and Liaoning Province.
Technical features:
It is suitable for various bulk materials and heterogeneous material yards for storing various materials;
Reclaiming capacity: 100~10000t/h;
Slewing radius range: 20~60m.
The machine control can realize the integration of mechanical, electrical and hydraulic systems to the unmanned operation of the whole machine.
4. Main Experience Projects
Domestic: 40 sets for Zhangjiagang, Luxi Chemical, Tangshan Guofeng Project, etc
Foreign Countries: 18 sets for projects in India, Iran, Myanmar, etc
